      WD240 Data Terminal



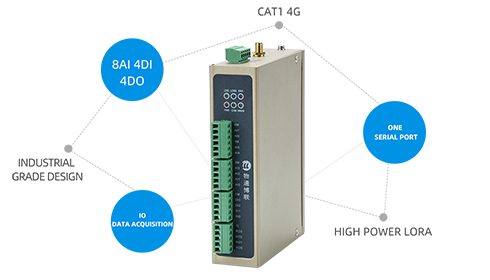

      LORA/4G,multi-channel AI, AO, DI, DO data acquisition






	HW parameters: 1 channel 232/485 serial port, 8AI-4DI-4DO and other multi-channel IO



	Networking function: CAT1 4G, high power LORA (433MHZ, 915MHZ)



	Acquisition function: support acquisition of analog quantity, digital quantity acquisition, support fast pulse counting



	Local transparent transmission: realize wireless data transparent transmission within 12KM through LORA



	Cloud access: realize remote wireless data monitoring with cloud platform through 4G



	Application scenarios: factories, mines, oil fields, water conservancy, agriculture, ports, etc.



































			Rich IO acquisition interface



			Supports four channels of 12-bit high precision analog input (8AI, 4DI, 4DO or 4AI, 8DI, 4DO or 4AI, 4DI, 4DO, 4DO or 2AO, 6AI, 4DI, 4DO, 4DO and other configurations)

			Support 4 ways of dry and wet connection type, optional 0~60V digital input, support counter function;

			Support 4 3A relay output, and support 0~30V DC and 0~250V AC signal access;

			With multiplexing circuit, can be equipped into 4AI/4DI/4DO/2AO-2AI, appropriate AI/DI/DO can be up to 8 channels;


















      Wireless LORA transmission function


      Built-in high-power, long-distance LORA transmission chip, the transmit power can reach 30dbm, and the maximum support 12KM distance transmission; support 410~493MHz and 850~930MHz optional frequency bands, available at home and abroad;
      flexibly configure LORA channels, Parameters such as power and air rate; support the setting of maximum frame length and timeout time, suitable for various data packets and corresponding speed scenarios
























      Standard Modbus RTU protocol



      Support standard Modbus RTU protocol for local IO control and data acquisition





















      Wireless 4G data to the cloud



      Support uploading serial port and IO data to various cloud platforms and systems through MQTT protocol through 4G network



























      Wireless transparent transmission



      Support wireless transparent transmission of 232 or 485 serial ports, support point-to-point, point-to-multipoint data transparent transmission,
support interference-free data transparent transmission of coexistence of different systems






















      High reliability industrial grade design



      1）6~35V wide voltage design, -40~+85℃ wide temperature design;

2）Isolated RS232 or RS485 design, 15KV ESD protection;

3）Adopt optocoupler isolated digital input, precise reference voltage and high reliability relay design;




























      Application Scenarios





















      Wired serial port read and write IO












      Wireless LORA read and write IO












      LORA serial port data transparent transmission











      Wireless 4G data to the cloud












      Point-to-multipoint local networking






















      Specifications














				Hardware Specifications





				Hardware Platform

				CPU cores

				32-bit Arm Cortex-M4





				Interface Features

				Power Interface

				DC 9V-35V (terminal)





				Serial interface

				1 serial port (RS232/RS485), 15KV ESD protection, 9600~115200bps, default 19200





				Analog Input

				4/8 AIs with 12-bit acquisition accuracy (current and voltage optional)

				Current type 4~20mA, 0~20mA Voltage: 0~5V, 0~10V, etc.





				Digital Input

				4/8-way optocoupler isolation 0~60V, support dry and wet node access (default dry contact, support 4-way counter)





				Digital output

				4-way 3A relay output 250V AC, 30V DC DC (expandable 4-way transistor DO)





				Antenna Connector

				LORA Antenna: SMA x 1  4G Antenna: SMA x 1





				Terminals

				3*6*3.81mm,1*3*3.81mm,1*5*3.81mm





				4G (optional)

				network format

				LTE Cat1 , maximum downlink rate 10Mbps, maximum uplink rate 5Mbps





				LORA (optional)

				Operating frequency band

				410~493MHz or 850~930MHz optional





				Receive Sensitivity

				150dBm





				Transmit Power

				30dBm





				Communication distance

				Maximum 12KM (recommended indoor 2KM, outdoor 8KM)





				Air Rate

				0.48K~62.5Kbps (up to 300K)





				Emission Current

				650mA





				LORA Channel

				50 channels, configurable





				Machinery

				Features

				Dimensions

				136x106.5x35mm





				Installation method

				Rails





				Shell

				Metal shell (local gold)





				Protection class

				IP30





				Cooling method

				Fanless cooling





				Weight

				280g






















      Product Selection














				Hardware selection





				Order number

				WD240---





				N (Uplink Network)

				L (with LORA module)/G (with 4G module)/W (with WIFI module, in development*)





				I (I O module)

				M0844 (M means module, 0 means 0 AO, 8 means 8 AI (4AI+4 multiplexed AI), 4 means 4 DI, 4 means 4 RO)





				S (serial port type)

				-232: RS232 serial port; -485: RS485 serial port





				Example

				WD240-LM0844-485 (8AI-4DI-4DO, domestic frequency band: 410~493MHz, 485 serial port)

				WD240-LM0484-232 (4DI-4AI-4DI-4RO, domestic frequency band: 410~493MHz, 232 serial ports)

				WD240-LM0448-485 (4DO-4AI-4DI-4RO, domestic frequency band: 410~493MHz, 485 serial port)

				WD240-LM2644-232 (2AO-6AI-4DI-4RO, domestic frequency band: 410~493MHz, 232 serial ports)

				WD290-LM0844-485 (8AI-4DI-4DO, overseas frequency band: 850~930MHz, 485 serial port)

				WD240-GM0844-485 (8AI-4DI-4DO, 4G CAT1, 485 serial port) etc.
























      Downloads





      【Product Specification】WD240 Product SpecificationV1.0





      [Product User Manual] WD240 Product User Manual V3.4





      [Configuration Tool] WD240 Configuration Tool
